What's new in BMC 2.2.0

BMC Documentation

BMC 2.2.0 brings Support for BadassMIDI's MIDIBLE UART to BLE Module and ST7735S TFT Displays.

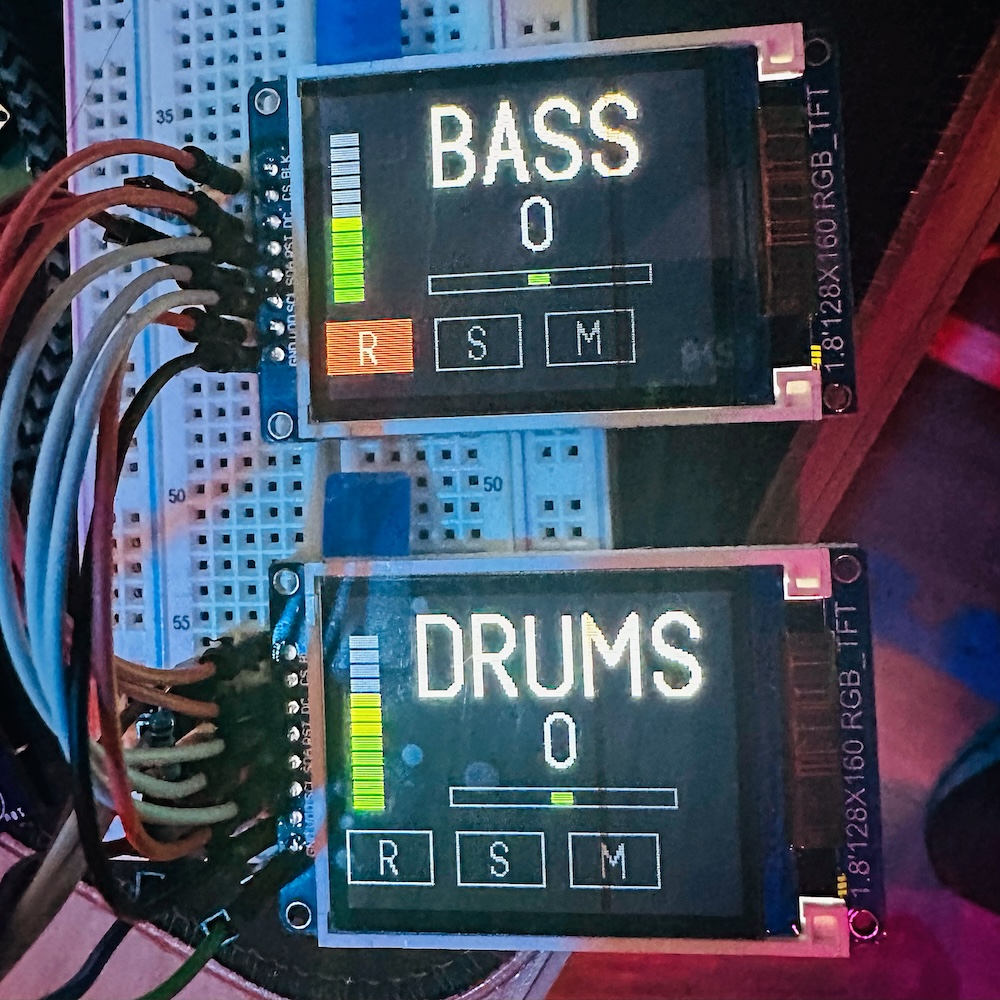

Supported displays include the 1.44" 128x128 resolution display and 1.8" 160x128 resolution displays, you can have multiple displays however they will have to be of the same type/size, as these are large you can have 1 display show 1 thing (like a layer number or layer name) or you can split them into 2 blocks, each block independent from the other, the blocks are stacked so you can have a two 128x64 blocks with a 1.44" display or two 160x64 blocks with a 1.8" display.

Note: splitting the displays into 2 blocks would apply to all the ST7735S display, also, within BMC these are called "Mini Displays"

New Firmware Features:

• Adds Support for Mini Displays (ST7735 TFT Displays)
• Adds Support for MIDIBLE

New Editor Features

• Adds Compatibility with Firmware 2.2.0
