Hi all, I want to introduce to the first in the line of Badass MIDI products, MIDI CHIP!

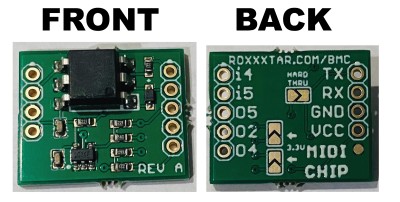

MIDI CHIP is a tiny board meassuring at 0.7" x 0.85" with a MIDI Input and Output Circuit ready to drop into any Arduino/Teensy/ESP32 project. It includes all the circuitry needed for Serial MIDI Communication including an Optocoupler Isolated MIDI Input and a Buffered Output.
You will only need to wire MIDI CHIP to your MCU via 4 wires, a Serial RX, Serial TX, VCC (3.3v or 5v depending on your MCU logic level) and GND.
Read more about MIDI CHIP here.
Specifications:
- 3.3V or 5V Operation (3.3v via Solder Jumpers)
- Breadboard Compatible (0.05"/2.54mm pin pitch)
- MIDI Spec Compliant
- Isolated MIDI Input with H11L1 Optocoupler
- Buffered MIDI Output
- Buffered Hard "THRU" instead of TX (via Solder Jumper)
- Dimensions: 0.7" x 0.85"
- ROHS
- Perfect for the Arduino MIDI Library
- Perfect for BMC - the Badass MIDI Controller Library!!
