MIDIBLE

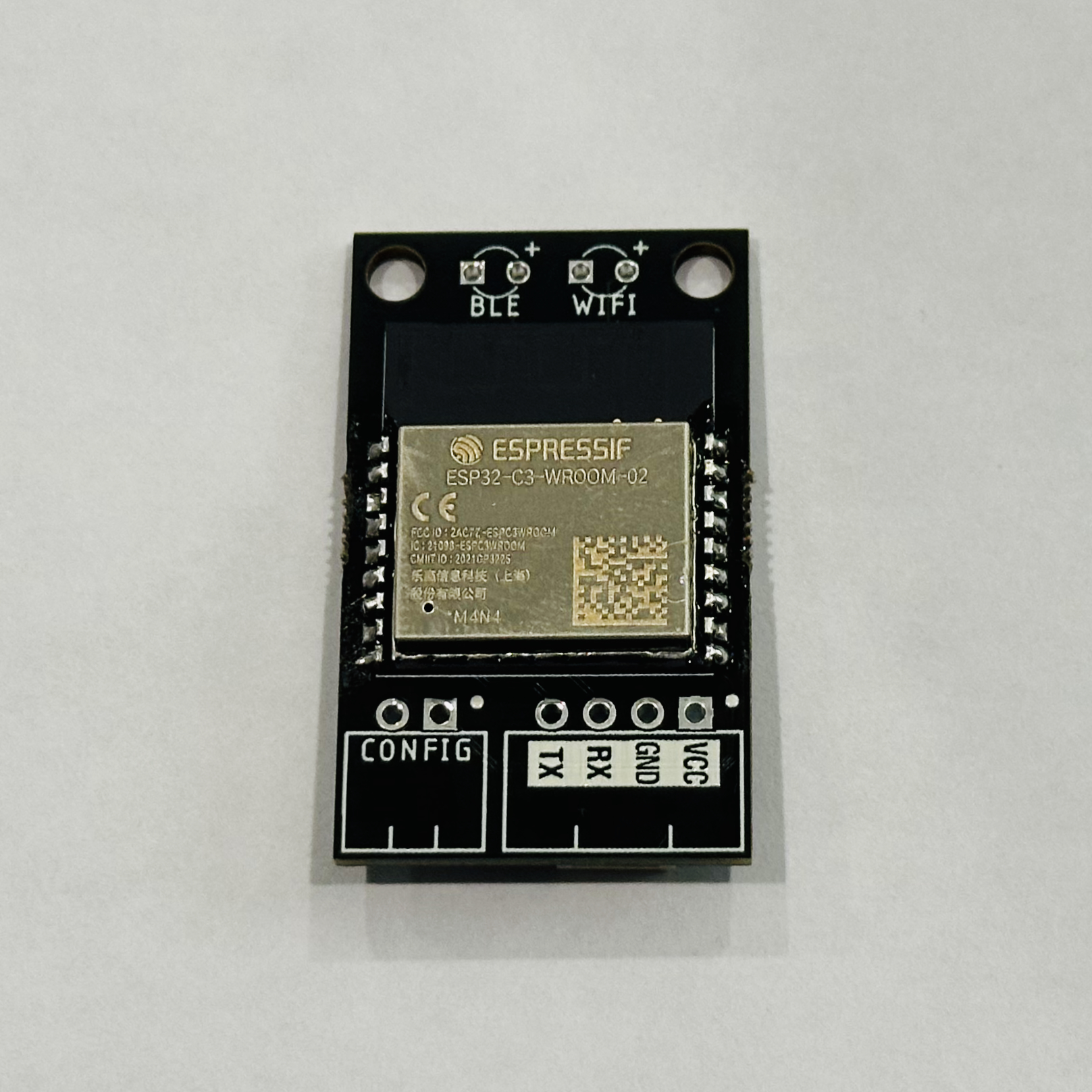

Introducing MIDIBLE! The Ultimate UART MIDI to Serial MIDI Module for Arduino/Teensy! Unlock the power of wireless MIDI communication with MIDIBLE, a compact and versatile module designed for DIY Arduino Musicians. This Bluetooth Low Energy (BLE) MIDI to Serial (UART) MIDI module seamlessly integrates into your Arduino projects, providing a reliable and efficient plug and play solution for wirelessly connecting MIDI-enabled devices. MIDIBLE comes with firmware pre-flashed that handles all the MIDI Communication and it's ready for future firmware updates over WIFI.

Key Features:

• BLE MIDI Connectivity: MIDIBLE enables a wireless connection between your Arduino projects and MIDI devices through Bluetooth Low Energy, offering the freedom to control and communicate without the constraints of physical cables.
• Plug-and-Play Integration: With MIDIBLE, incorporating wireless MIDI into your Arduino projects has never been easier. The module features a user-friendly UART interface, allowing for simple plug-and-play integration with your existing setups. Just wire your MIDIBLE to your Arduino's Serial Port and use the Arduino MIDI Library, it's that simple!
• Arduino Compatibility: MIDIBLE is tailored for Arduino compatibility, making it a perfect match for your Arduino-based musical instruments, MIDI controllers, or any project that involves MIDI communication. There's no coding needed on the MIDIBLE side, MIDIBLE is compatible with any 3.3v Arduino (a level shifter and regular needed for 5v arduinos).

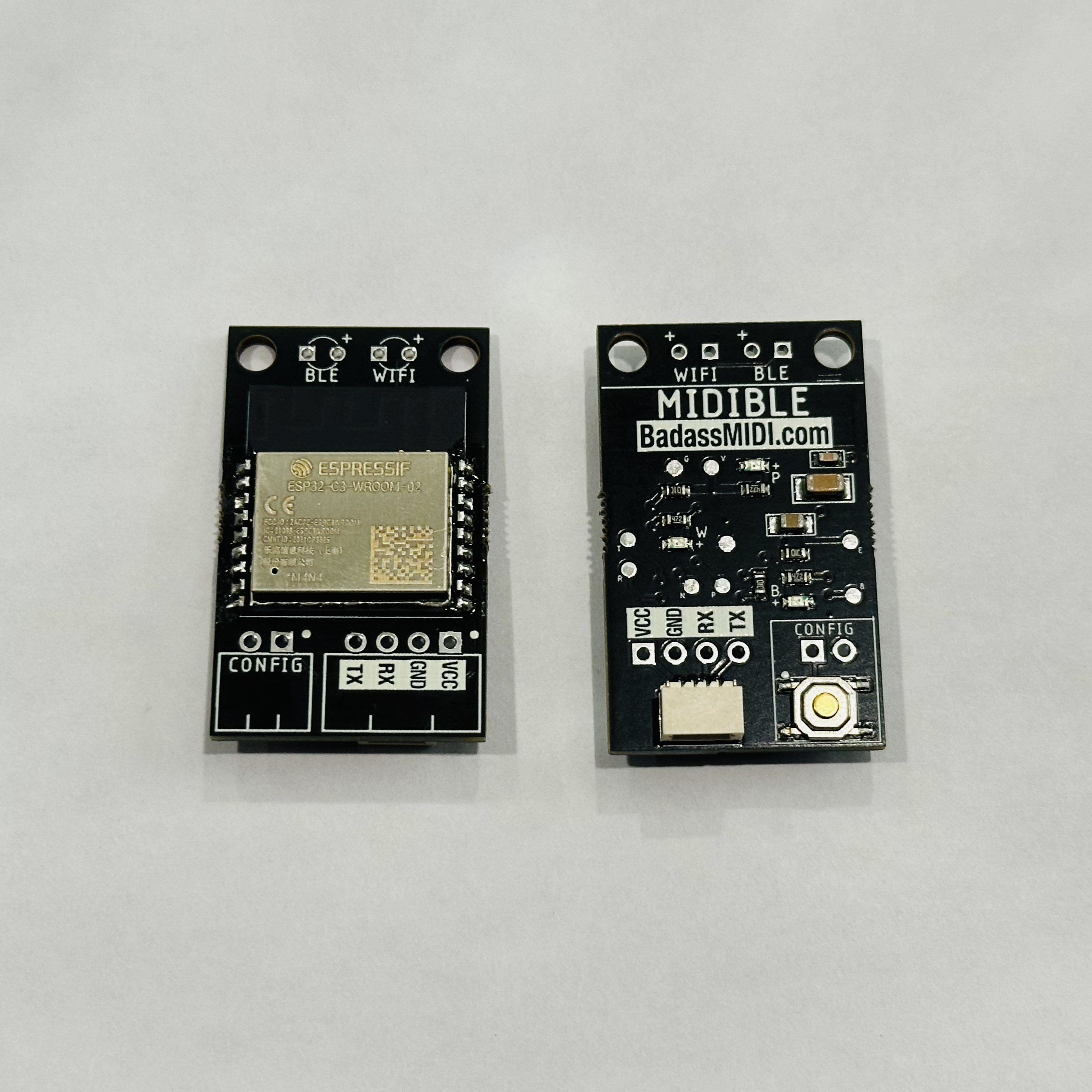

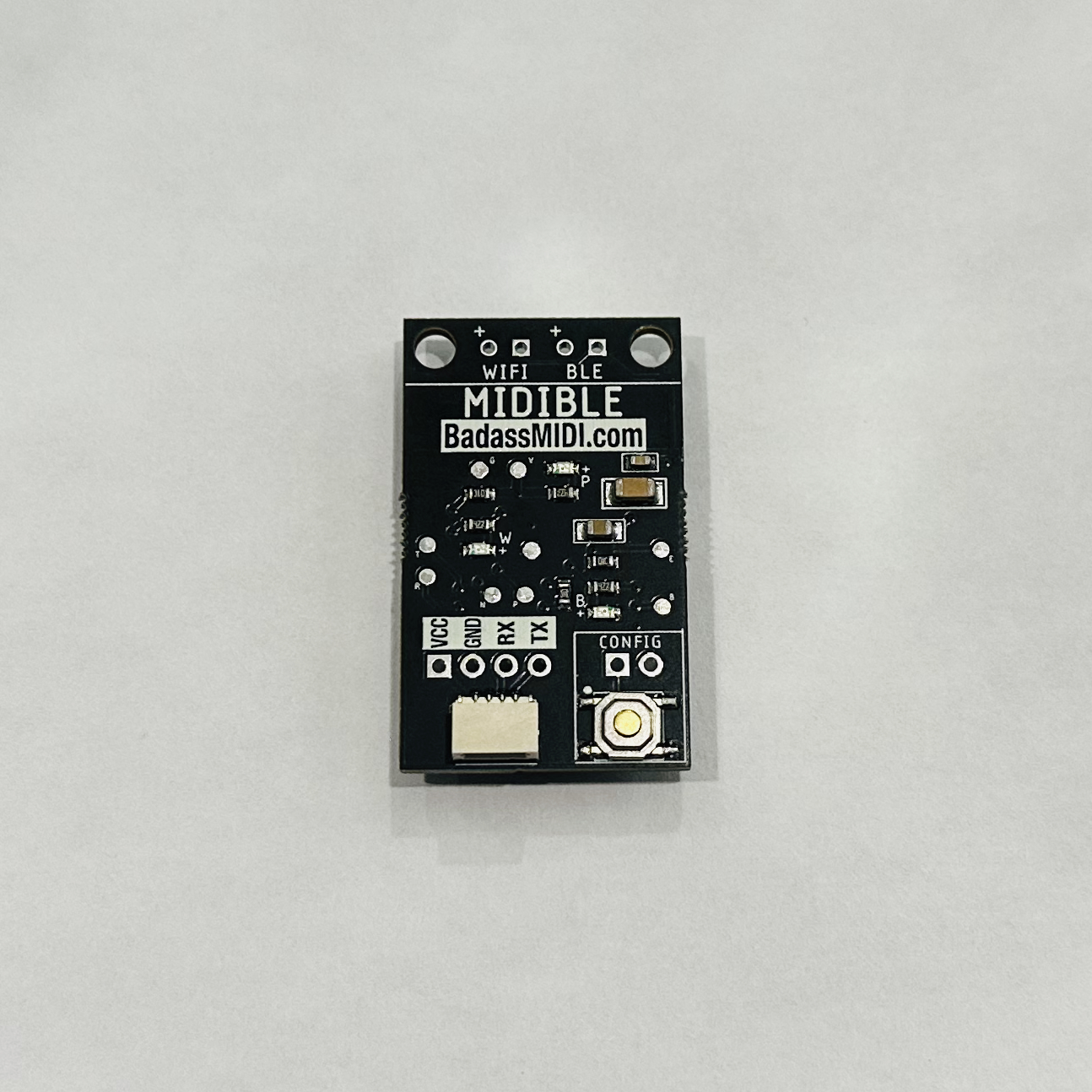

• Compact and Durable Design: The compact form factor of MIDIBLE ensures it can be easily embedded into your projects without taking up valuable space. Its durable design ensures reliability, whether you're creating a portable MIDI controller or enhancing your musical instruments. Two 3mm holes are available for mounting and Two LED can be soldered to MIDIBLE to external status.
• Versatile Applications: Whether you're a musician, maker, or hobbyist, MIDIBLE opens up a world of possibilities. Build wireless MIDI controllers, enhance your musical instruments, or experiment with MIDI communication in your Arduino projects.

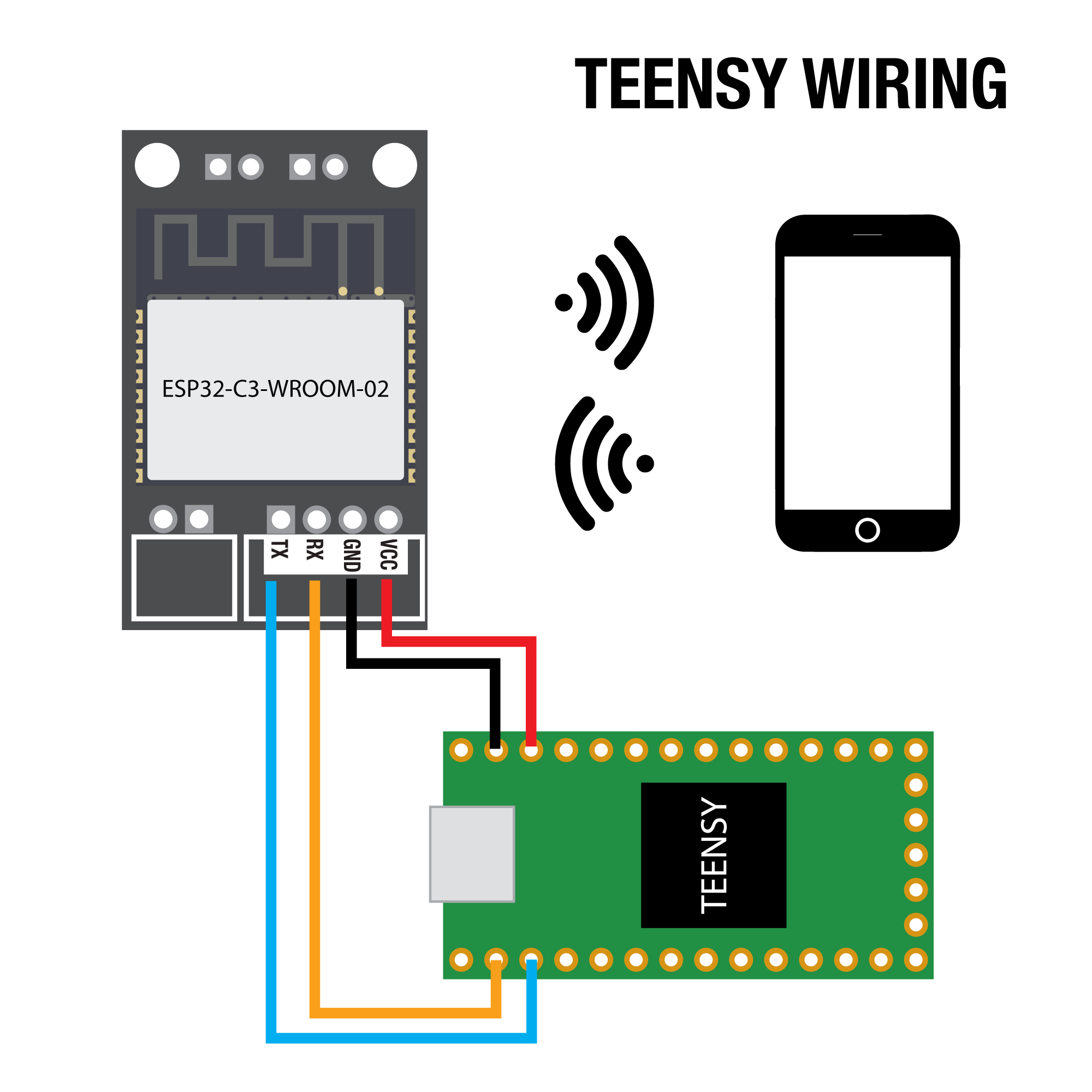

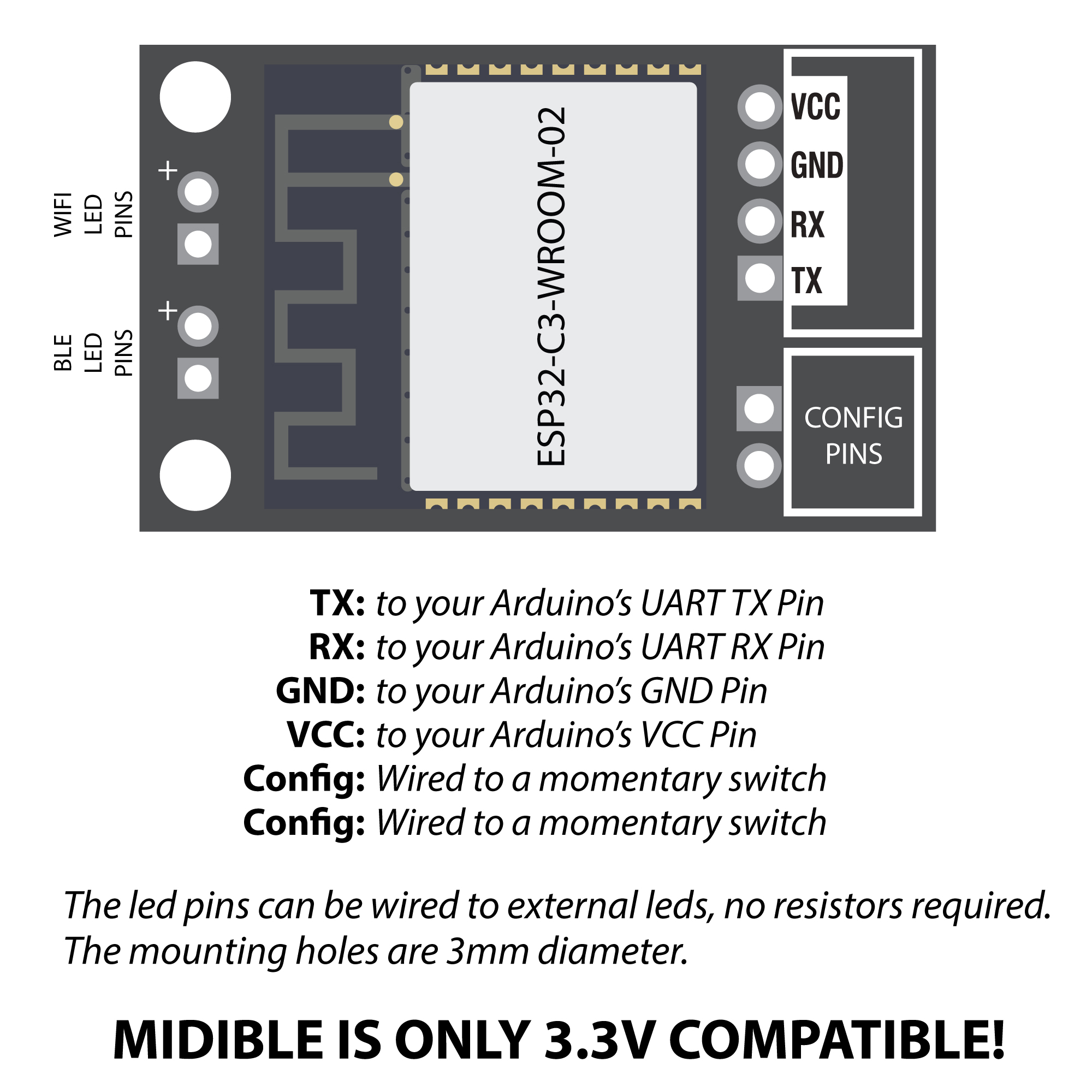

NOTE: the TX/RX pins on MIDIBLE are labeled so that you wire TX on MIDIBLE to TX on your Arduino and RX to RX. HARDWARE SERIAL IS HIGHLY RECOMMENDED!

MIDIBLE needs about 100mA of 3.3v power to run the Bluetooth LE antenna, if you have a lot of devices using the 3.3v power supply of your microcontroller you should add an additional 3.3v regulator to provide power to MIDIBLE, please make sure to use an appropriate power supply.

**** MIDIBLE DOESN'T HAVE A BUILT-IN 3.3V REGULATOR, DO NOT POWER IT WITH 5V OR USE 5V LOGIC, IT WILL DAMAGE MIDIBLE PERMANENTLY. USE ONLY 3.3V LOGIC AND VCC!!!

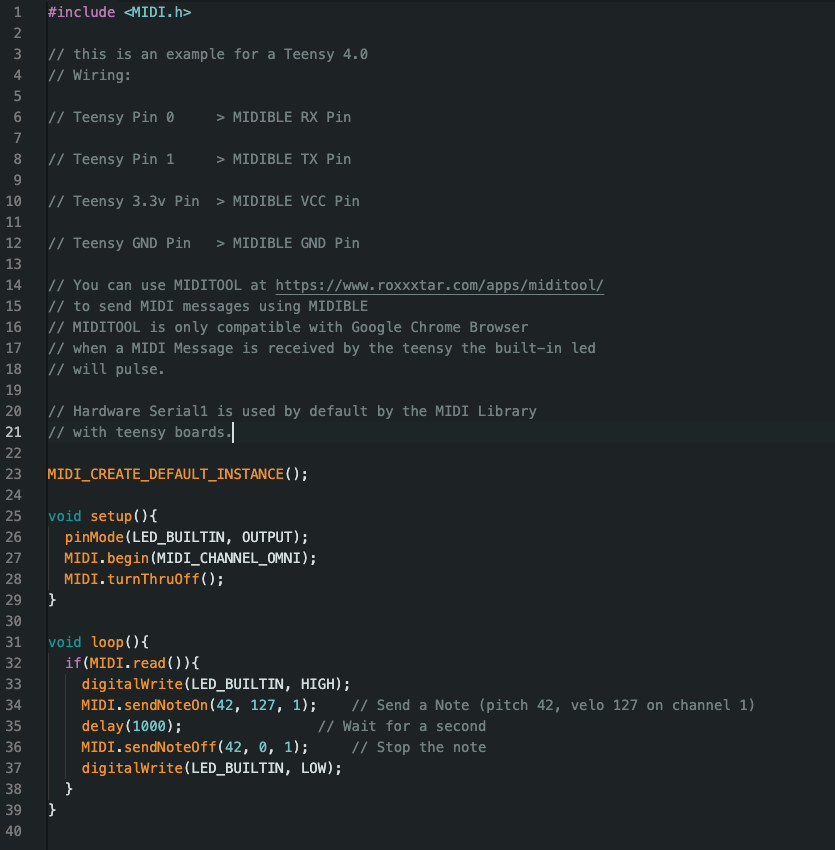

An example sketch is provided below, as you can see you can treat MIDIBLE as a standard MIDI Input/Output.

Check out the MIDIBLE Manual here.
