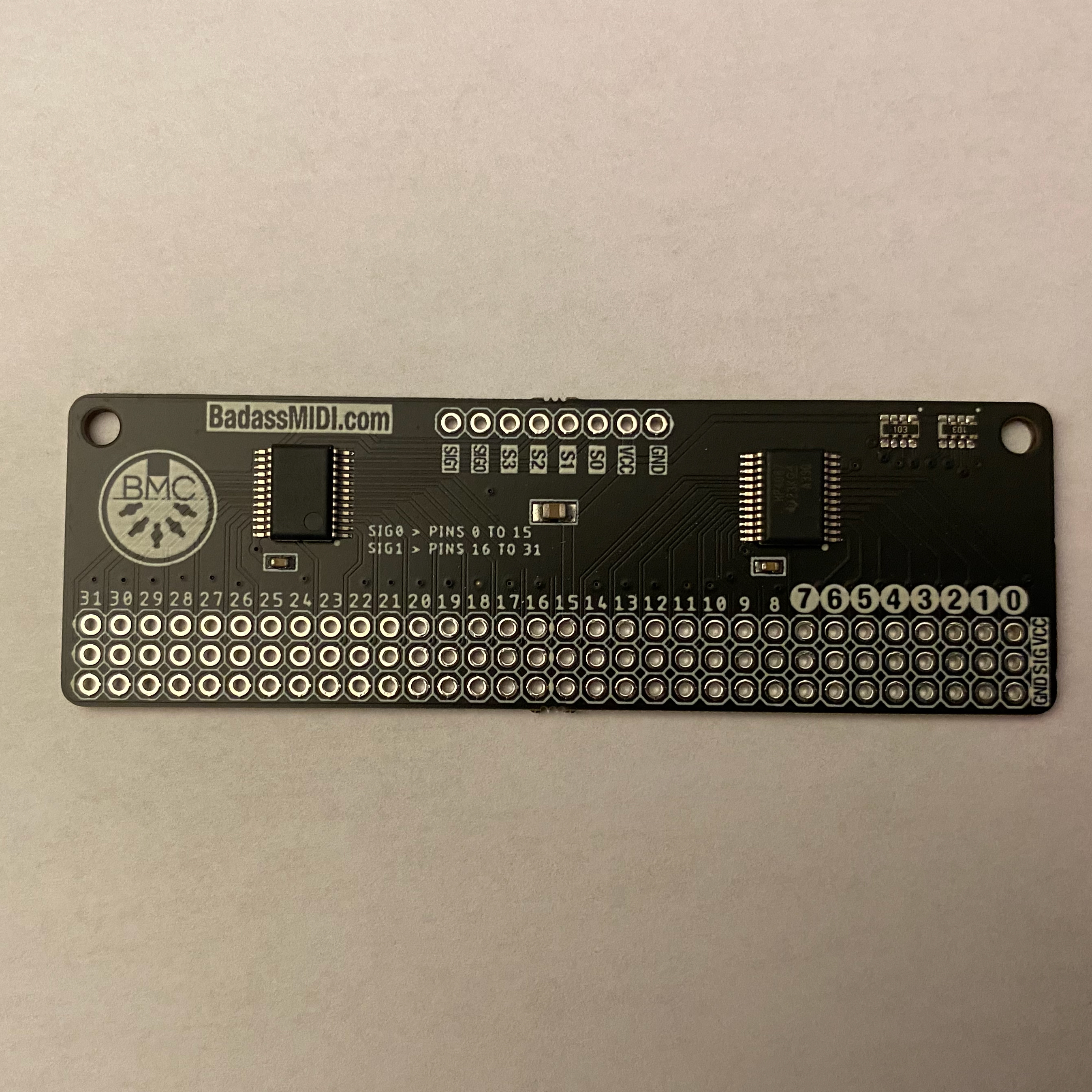

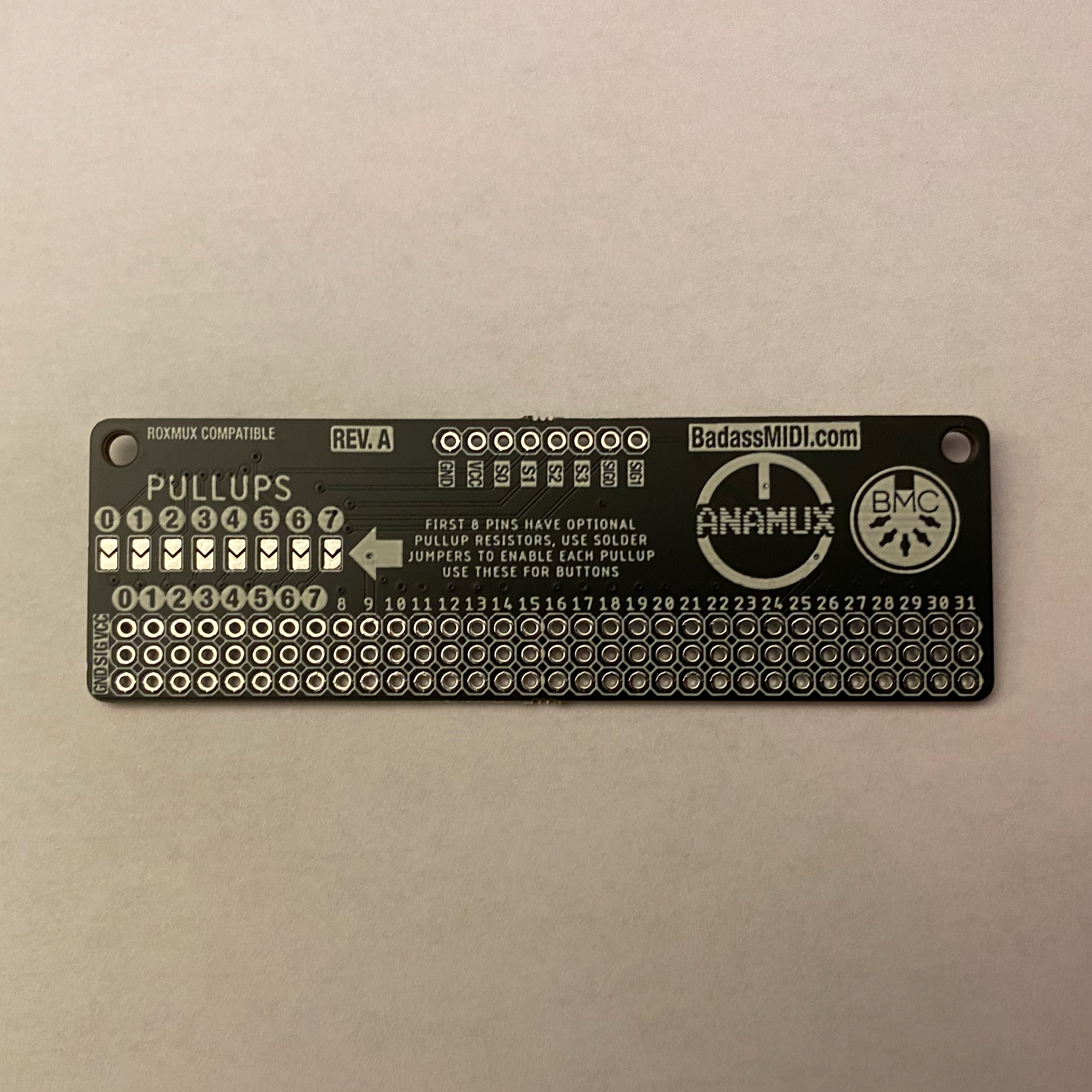

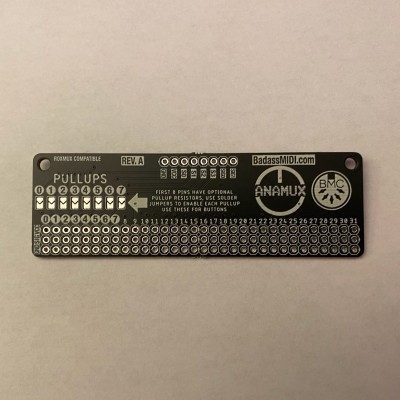

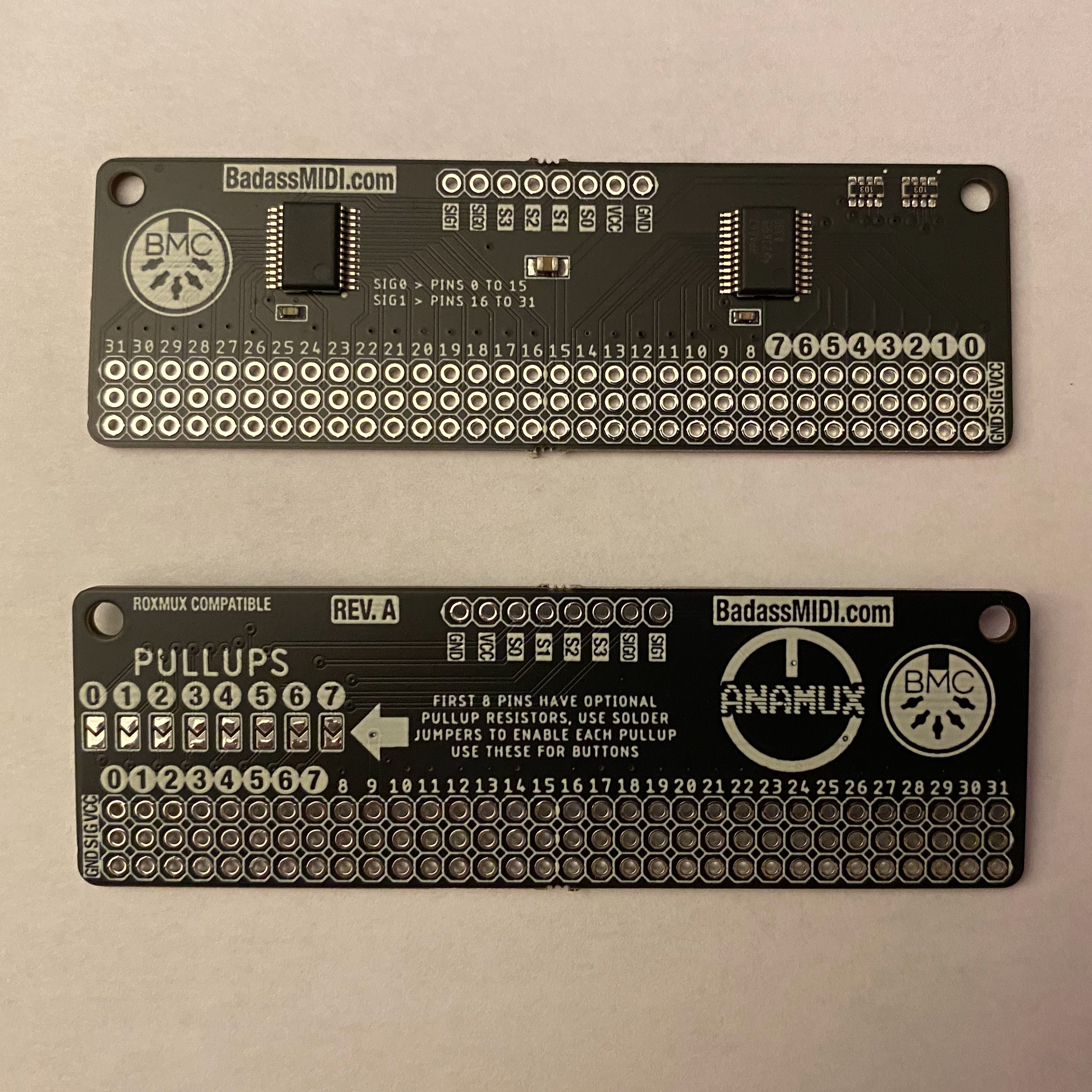

ANAMUX is a 32 Channel Analog Input Multiplexer for Arduino Compatible Boards, at it's heart there are two 74HC4067 Analog Multiplexers. These can be used to read Potentiometers. The first 8 Channels have an selectable 10k pullup resistor each (selectable using solder jumpers) to make it easier to wire buttons as well.
Pins are laidout to be wired directly to potentiometers, a row of VCC, row with each signal and a row of Ground.

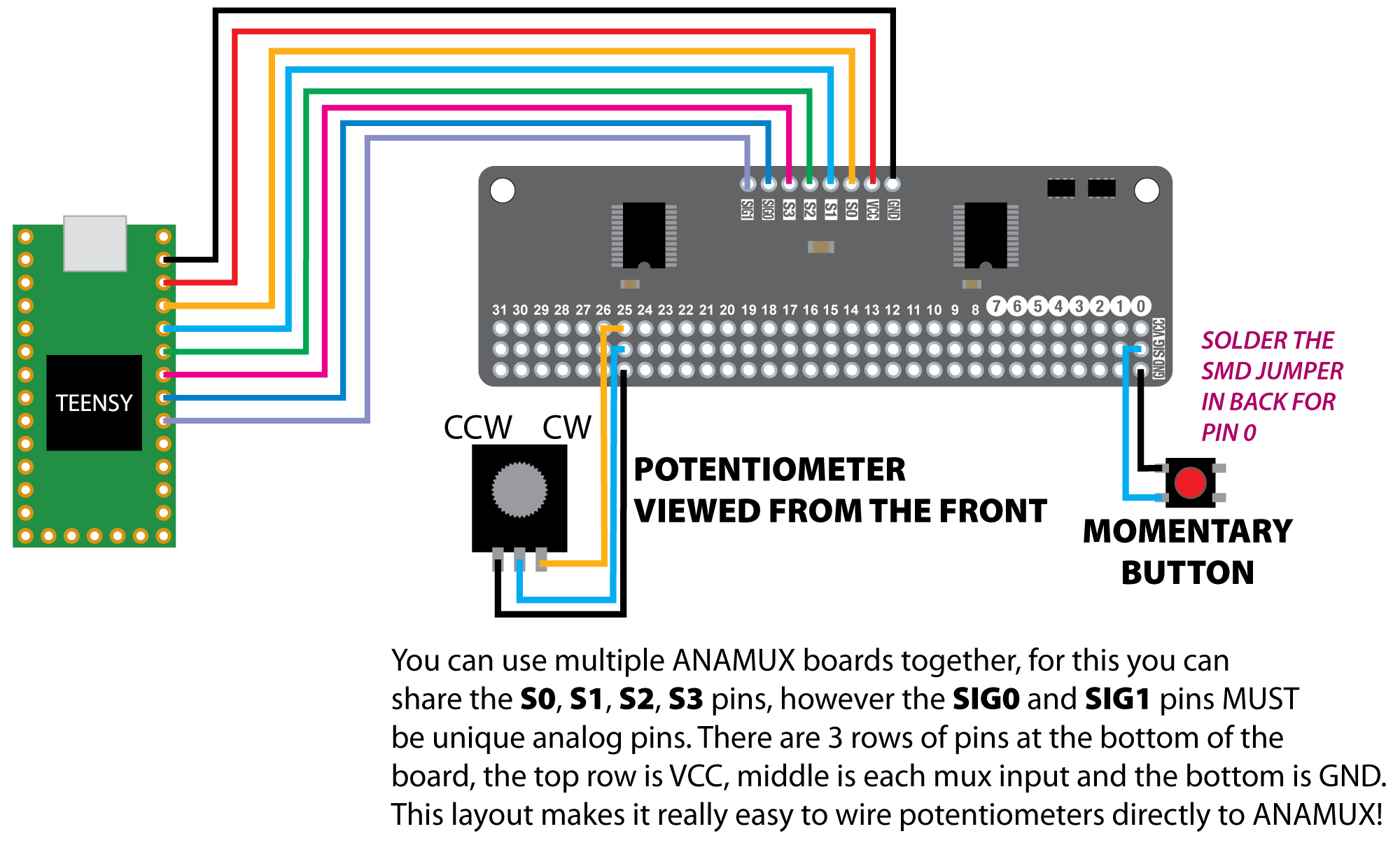

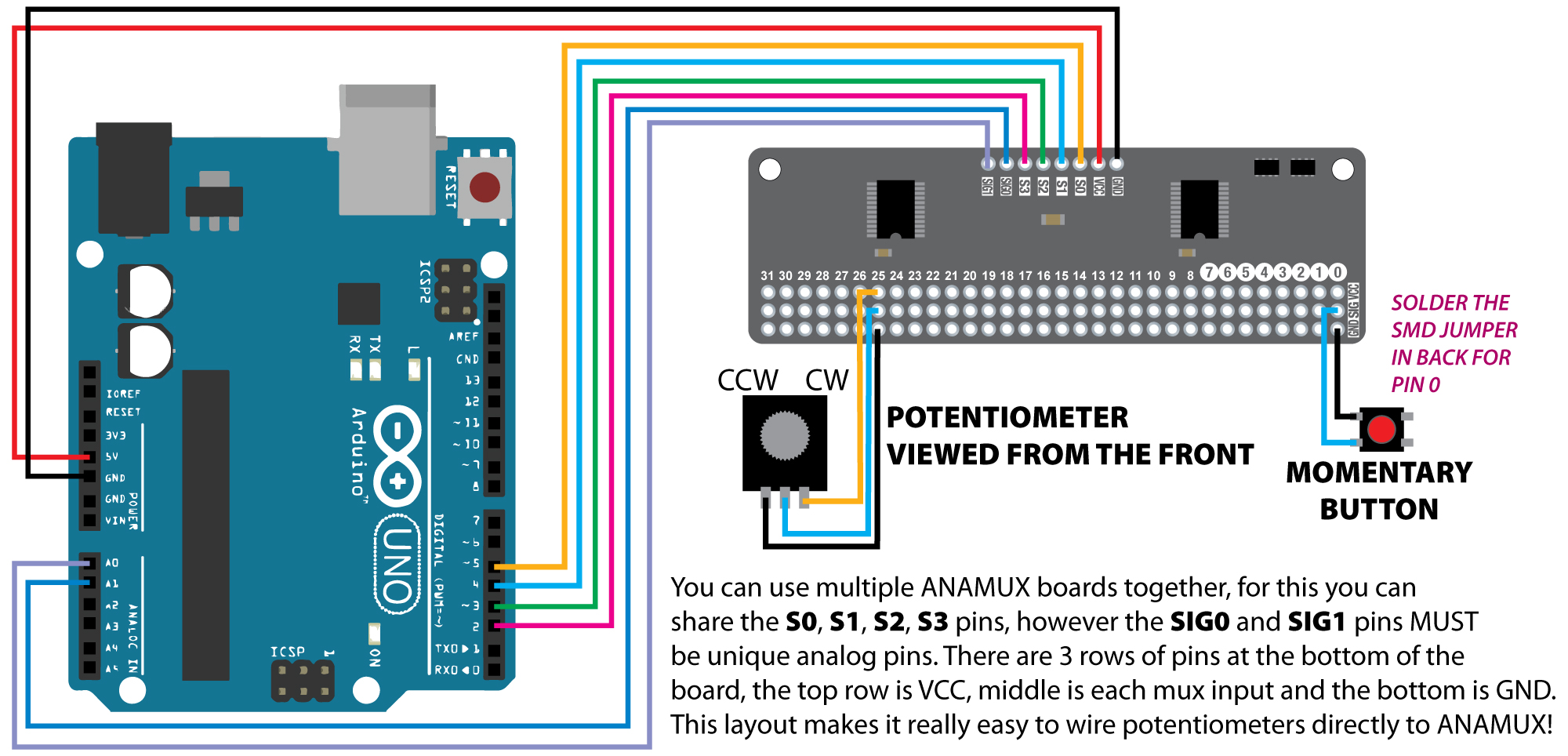

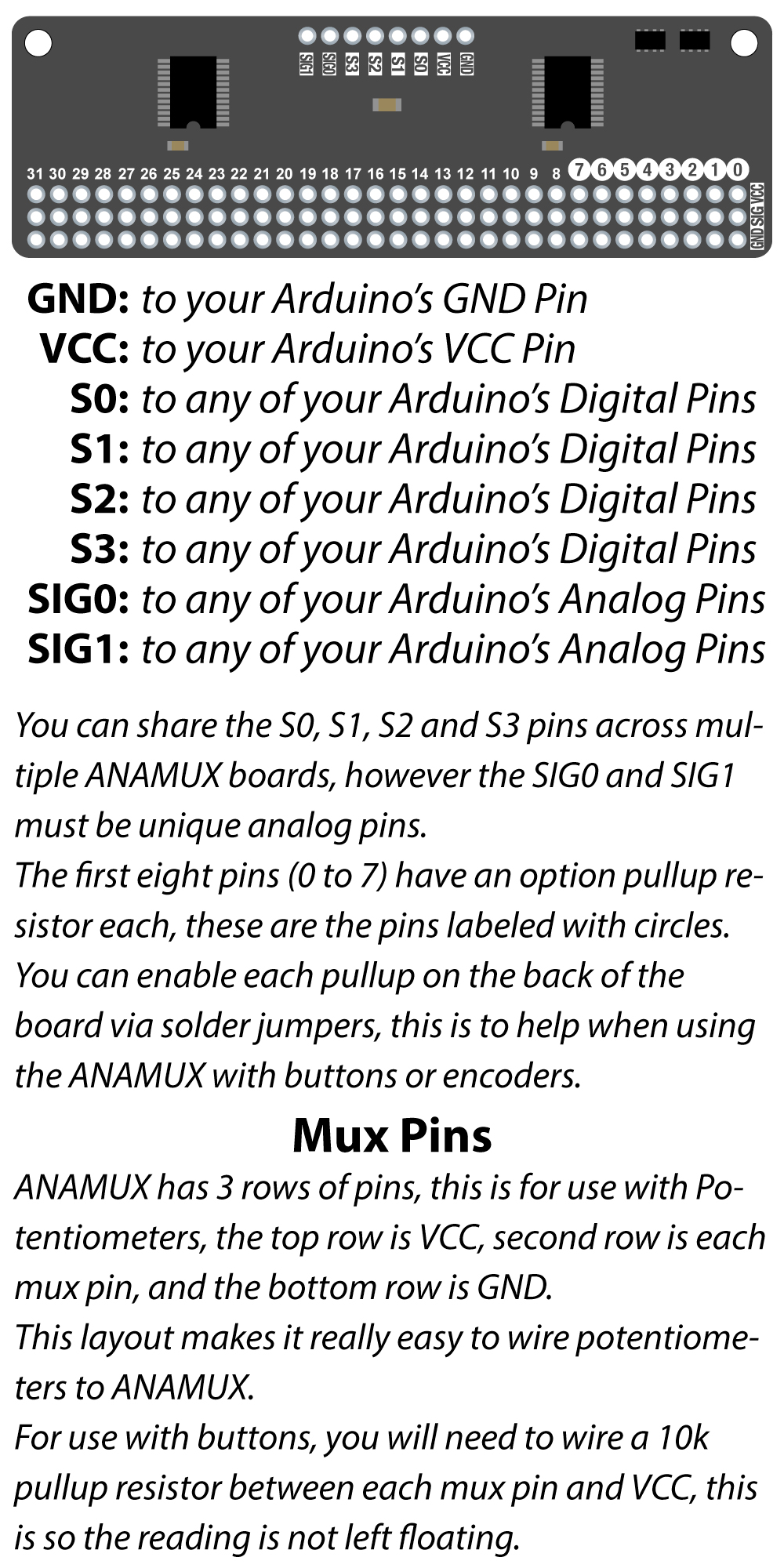

You will need to wire ANAMUX to your MCU via 8 wires, 4 Digital Pins (any digital pin on your board), 2 Analog Pins (these can be any analog capable pins on your board), VCC (3.3v or 5v depending on your MCU logic level) and GND.
