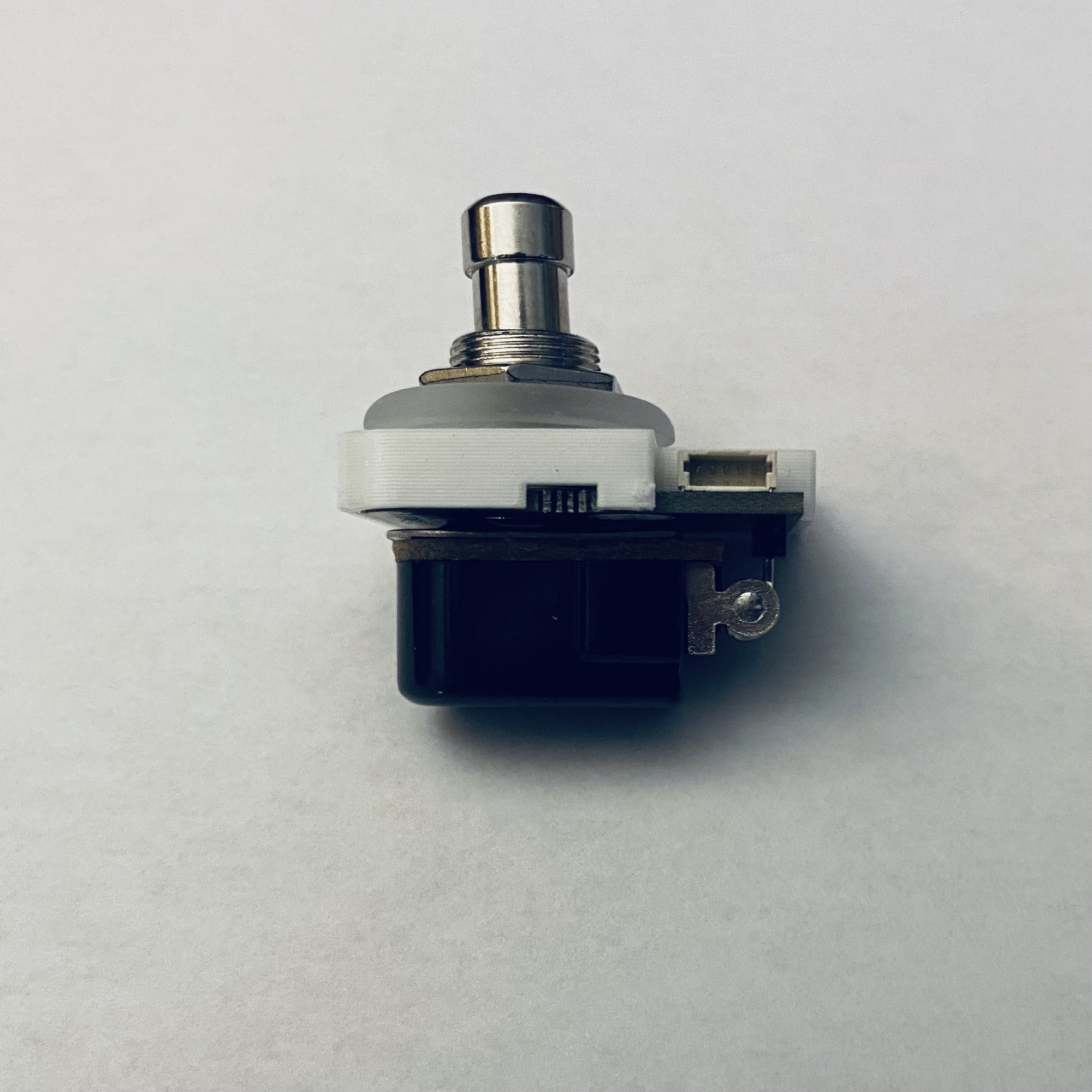

The PixelStomp is a Momentary Soft-Touch Footswitch with 2 WS2812C Leds built-in, they are addressable Leds which means you only need one data line from your Arduino Compatible MCU to set their color.

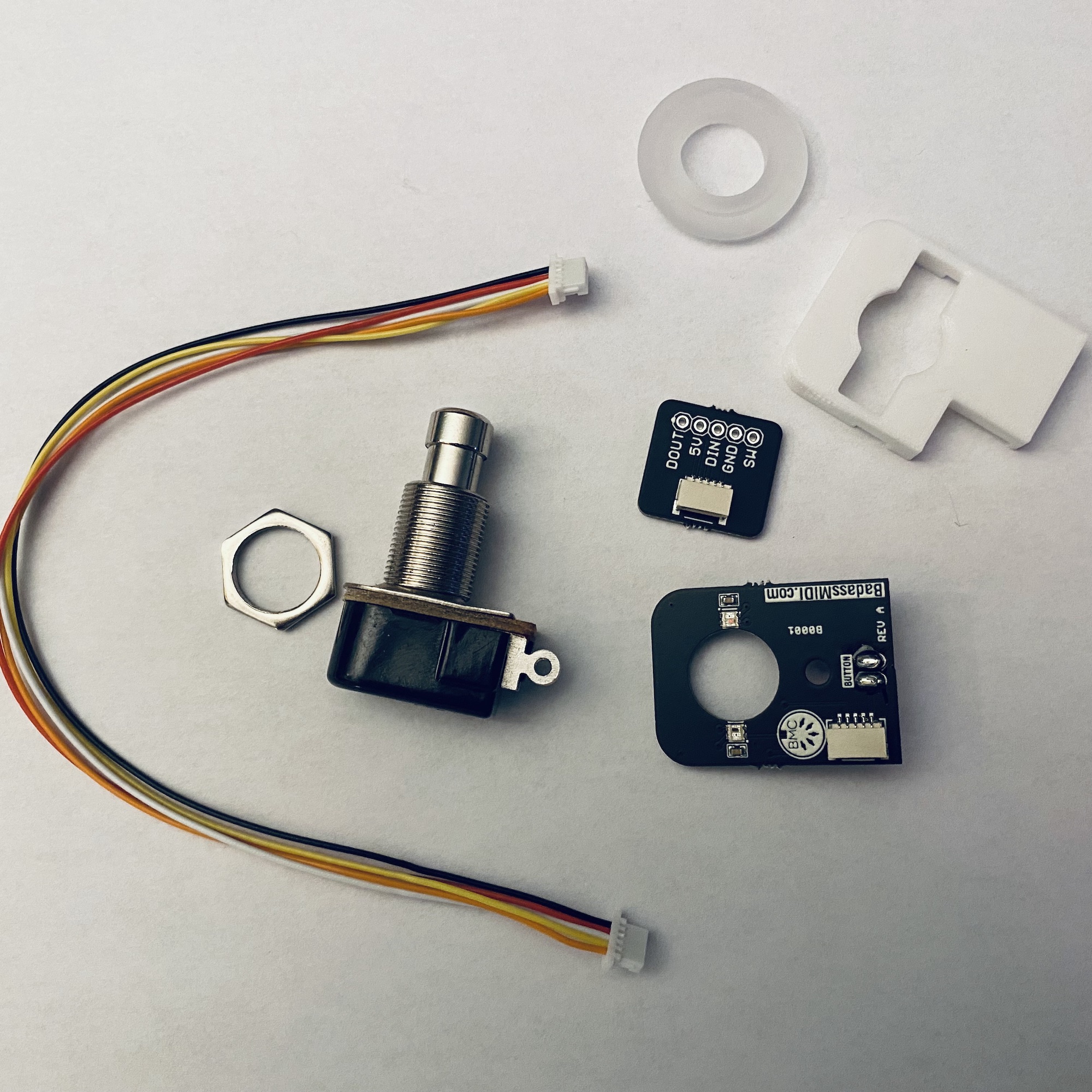

The PixelStomp comes with a custom PCB with 2 WS2812C Addressable Leds, their inputs are wired in parallel which means both leds are handled as one, a 3D Clear Resin Washer is included to let the light from the LEDs shine thru, a PCB cover is also included to protect the PCB.
PixelStomp has a JST SH connector to make it easy to connect many without tons of wires all over the place. A 20cm/7.8" long 5-Pin JST SH cable and a JST SH to 2.54mm/0.01" Pitch breakout board are included with every PixelStomp, the breakout is designed to work with a typical breadboard making it easy to connect PixelStomp to your project.

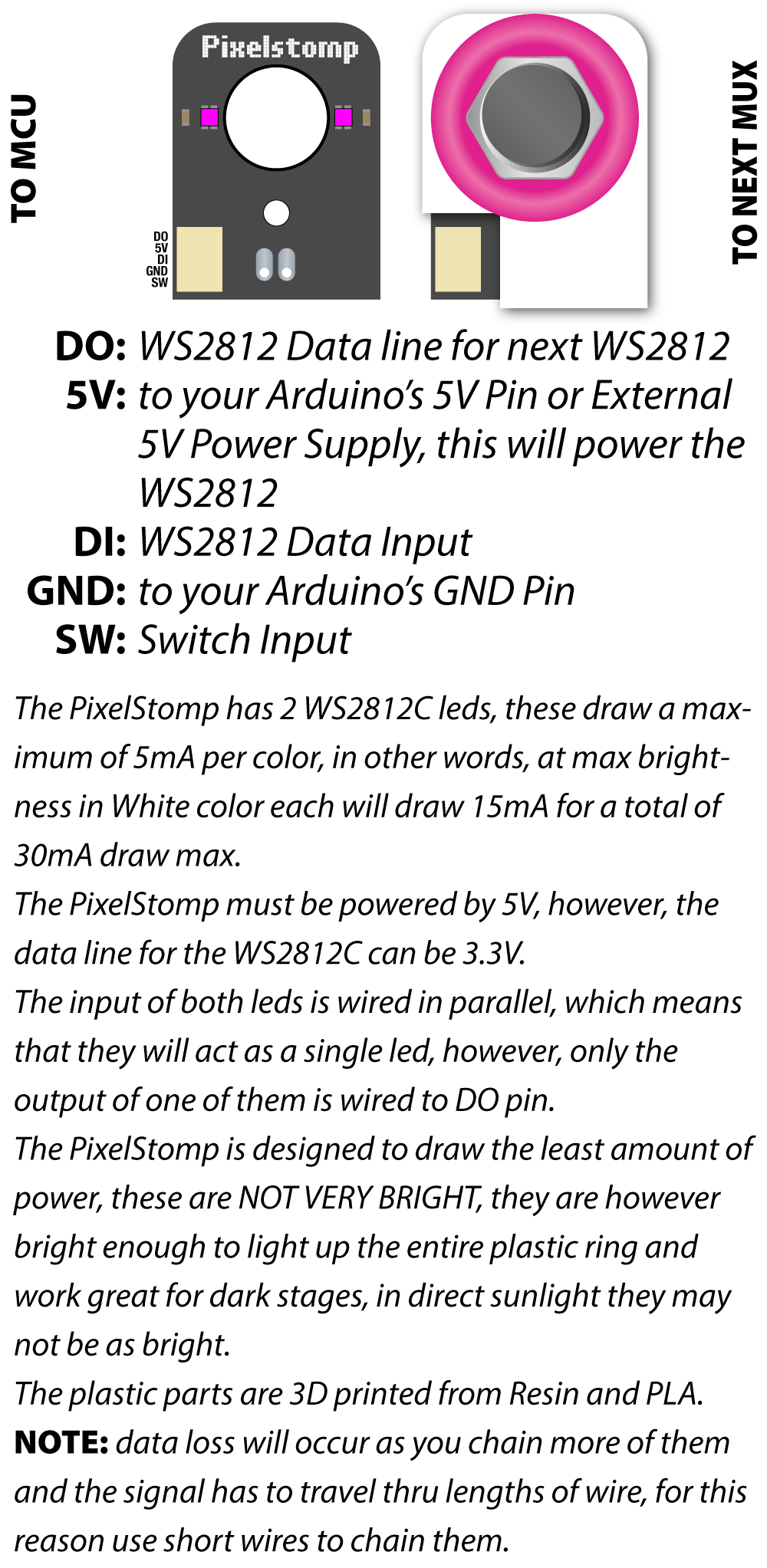

The PixelStomp uses the WS2812C leds which require a 5V voltage for power BUT you can use 3.3v logic for the data line.

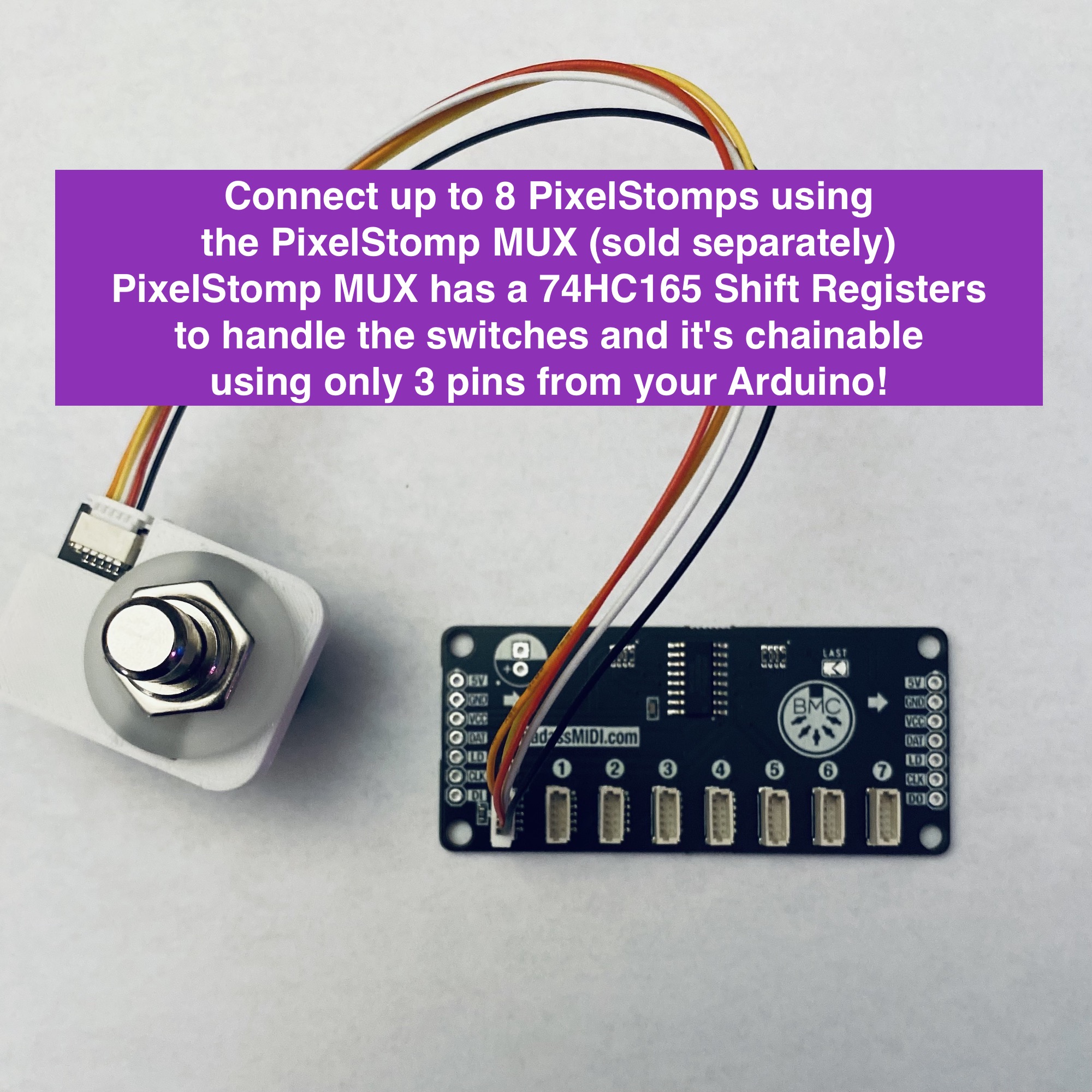

If you want to add multiple PixelStomps to your project, we also carry the PixelStomp Mux which has JST SH connectors for up to 8 PixelStomps and a 74HC165 Shift Register with which you can handle the footswitches in your code.
NOTE: PixelStomp requires you to drill an 18mm/0.7" hole for mounting an a panel at least 1mm thick.
